                    The GI 370 Vertical Edge Dyeing Machine

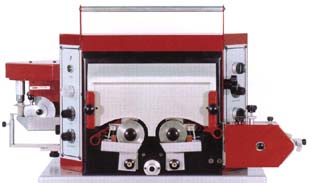

     click for close-up of the machine head

The 370 Vertical Edge Dyeing Machine is suitable for many kinds of leather goods and footwear. Some examples are bags, belts, wallets, suitcases, etc. The beauty of the 370 is that it combines three types of machinery into one package. It is supplied with vertical belt-dyeing which dyes both sides of the belt as it passes through; it has horizontal edge dyeing, which can be used to dye any particular piece; and it has vertical edge dyeing. It is supplied with a straight knurled roller, which can be changed to a shape roller upon request. The speed can be controlled electronically as well. The dyeing paint that is used is usually water based so that the cleanup is very simple and takes only a short time. You can simply run the paint tank under warm water and scrub with a sponge.



                                                                                            Specs:



Head Only
Head and stand
Weight         47  Kg. Weight        78   Kg.
Height          43  Cm. Height         146 Cm.
Width           77  Cm. Width          77   Cm.
Depth           37  Cm. Depth          52   Cm.
